MAX-FLEX FENCE



MAX-FLEX Electric Cattleguard & Gateway Materials

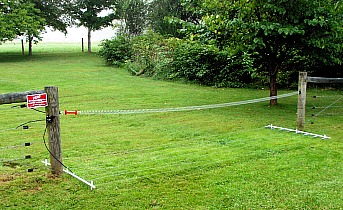

Max-Flex electric cattleguard






The MAX-FLEX™ Electric Cattleguard can be installed in less than an hour easily.

It has been in operation on many farms across the country since 1982 with all types of livestock.


D800
- The MAX-FLEX™ CATTLEGUARD KIT includes the Sun-Cote™ solid fiberglass pieces, galvanized Superlife™ compression springs, spring gate (for training purposes only), warning sign, fence switch, clamps, cable, and all other pieces needed for assembly. The Cattleguard can be made to any width opening desired (high tensile wire not included). The Cattleguard will operate even with heavy vegetation on the wires if the fence energizer is capable of handling vegetation without shorting out, like MAXIM™ fence energizers.


cattleguard springs

GATEWAY MATERIALS



D612 - CUTOUT SWITCH is a large heavy duty and durable cut-out switch. Used at gates and beginnings of sections of fence to make maintenance and management much easier. Photo is obsolete, D612 looks like D615 but is single pole.


cut out switch

D615 - DOUBLE POLE SWITCH is used to set up fence wires than can be switched from hot to ground seasonally or between fence and ground energizer lead out wires to switch the fence from "energizer" to "ground" for lightning protection when not in use.

double pole cut-out switch



D810
- The MAX-FLEX GATE CATCH is very easy to use, even one handed with gloves. It has a spring loaded locking ring, comes with a 4" staple (to drive into a wood post), 14" of chain, and a quick link.



gate catch


D831& D835 - SPRING GATES
are available in two standard sizes: 12-16' (D831) with a black handle and 24' (D835) with a red handle. Includes large spring, large handle, post insulator, and gate activator.

spring gate


D837 GATE ACTIVATOR
is a handy device for installing electric gates. Includes post insulator, metal bracket for attaching gate handle, and bolt for attaching electric lead wire.


electric wire gate activator



D844 RED GATE HANDLE is a large durable plastic handle with a very strong galvanized extension spring inside.


white gate handle
